HDD SSD DOCKING STATION 2x USB CARD READER

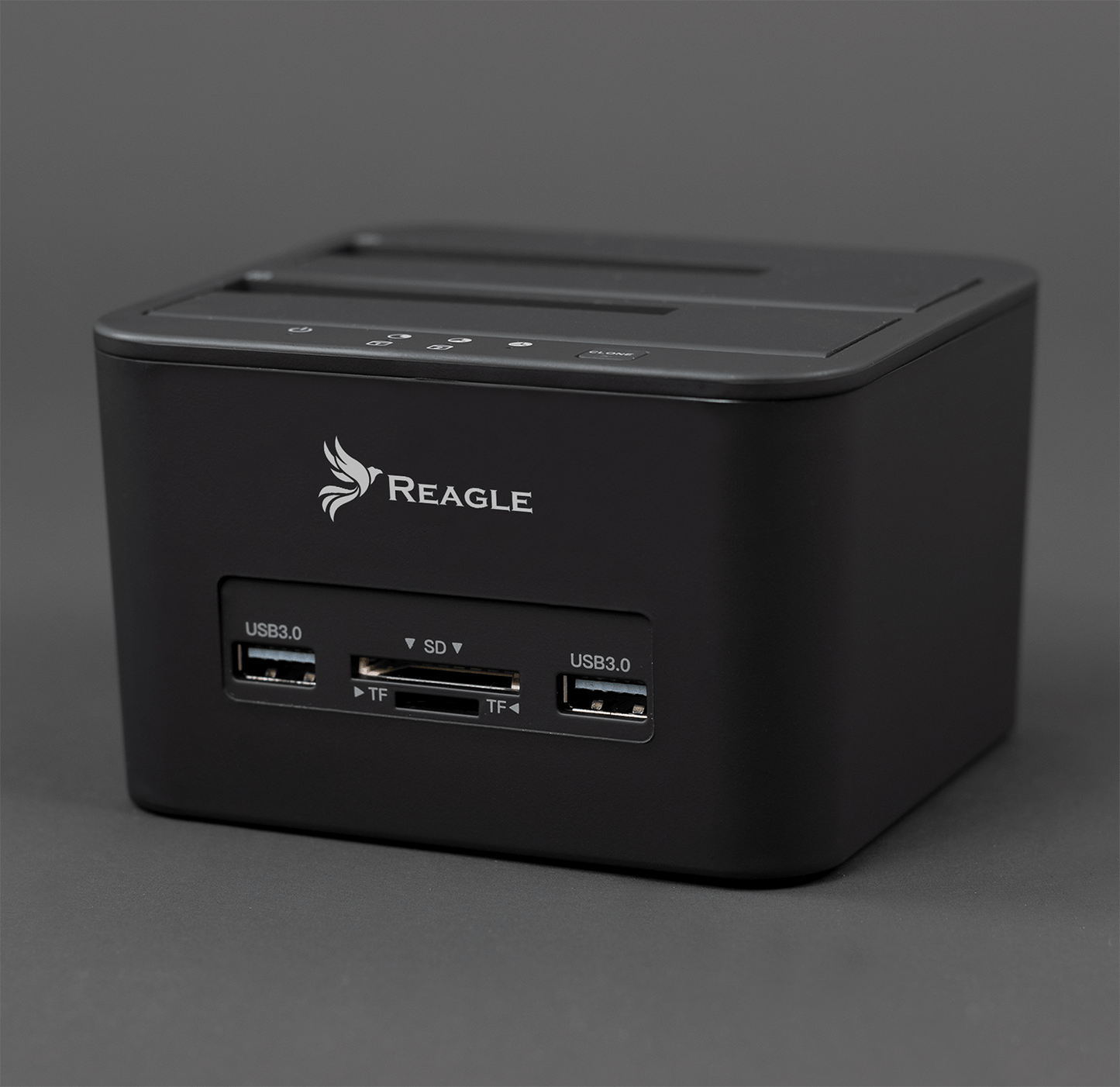

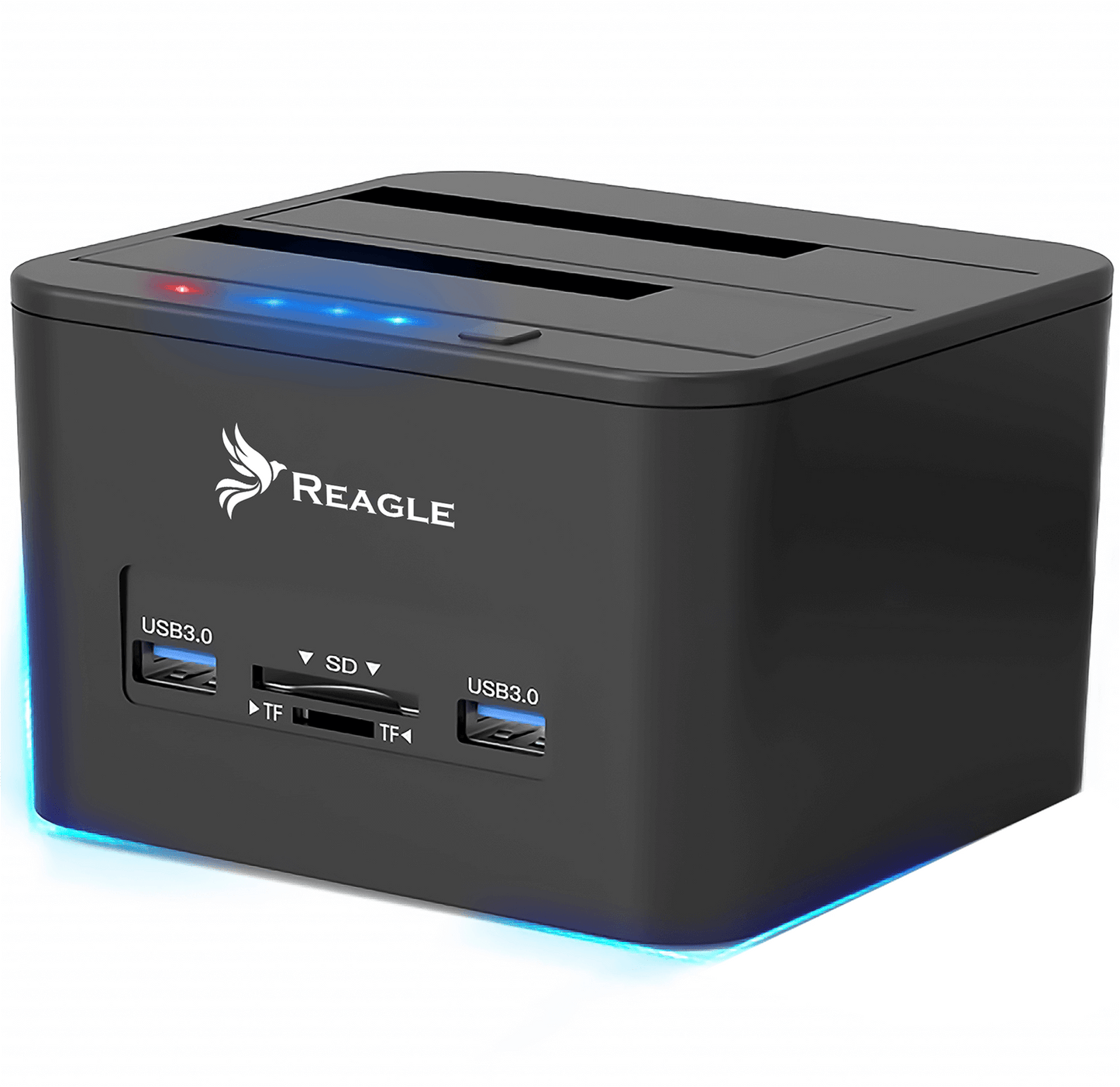

The RDOC72 model from Reagle is a docking station for two HDD and SDD drives with a card reader and USB ports.

The most important features :

• 4 in 1 - reading data from a disk, cloning disks, reading and transmitting from USB ports, card reader
• Support for 16 TB drives (maximum 32 TB, i.e. 2 x 16 TB)
• Support for 2.5" and 3.5" SATA I/II/III drives
• Compatibility with systems: Windows , Mac OS
• SD and TF card readers support cards up to a maximum capacity of 2 TB
• 2 USB ports on the front of the case for easy connection of additional memory
• Offline disk cloning
• Access to data on disks after connecting to a computer
• Data transfer up to 5 Gb/s
• 12V 3A power supply
• A neat and compact case that takes up little space on the desk

Simple backup

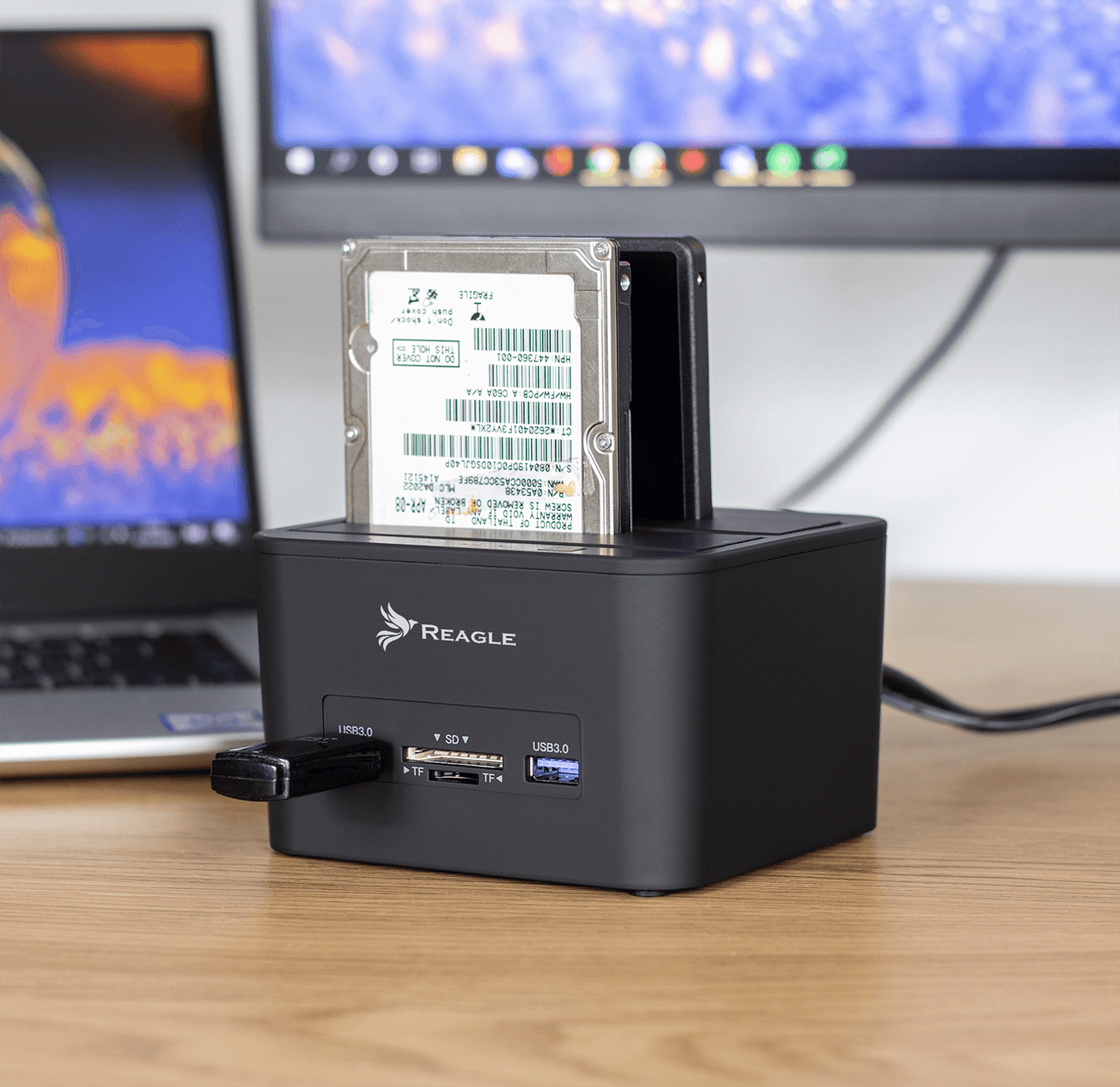

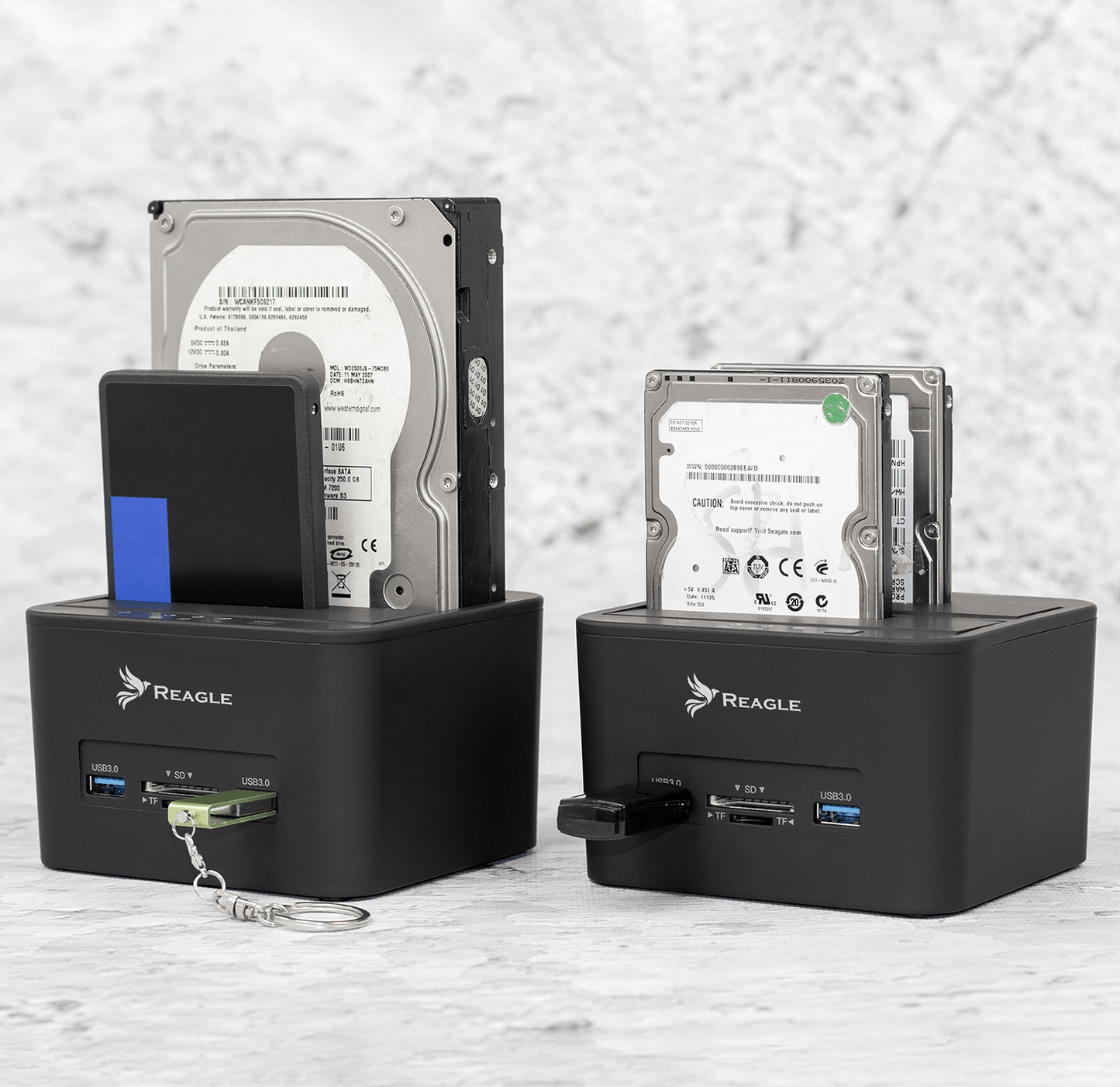

The Dual Bay docking station offers easy access to 2.5" and 3.5" HDD SSD SATA I/II/III drives . You no longer have to worry about lack of space for storing data, because the Reagle docking station supports hard drives with a capacity of up to 16 TB . It is an ideal solution for backing up and processing data, formatting and transferring files.

Offline cloning function

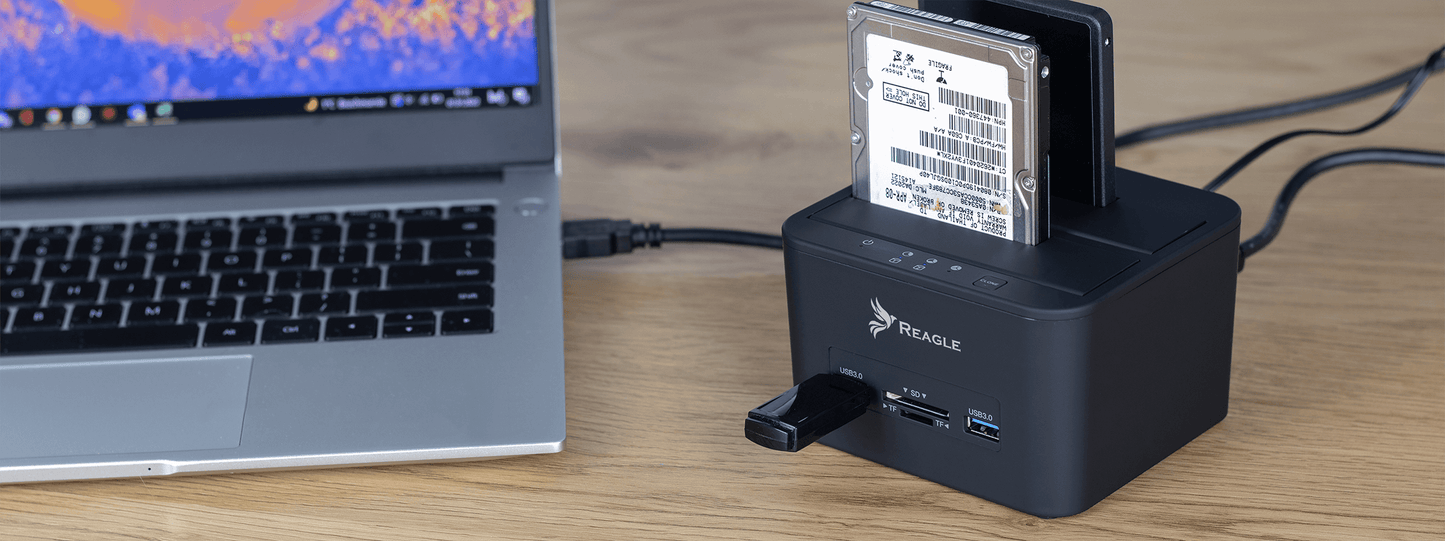

The Reagle Hard Drive Docking Station can be used to clone an existing hard drive without connecting to a computer, or simply as external storage to transfer data between the hard drive and your computer.

Note: The destination disk must be larger/equal to the source disk!

Fast and simple operation

The station has the SuperSpeed ​​USB 3.2 Gen 1 standard , backwards compatible with USB 2.0/1.1. This speed ensures faster transfer, up to 70% faster reading and 40% faster writing. Installing the drive is quick and easy - you don't need any additional tools to do it. Thanks to hot-swapping technology, you can connect and disconnect devices while the power is on.

The station is additionally equipped with two USB-A ports and SD and TF card readers for cards with a maximum capacity of 2 TB and data transfer speeds of up to 480 Mb/s. Thanks to this solution, you can easily and conveniently transfer high-resolution photos and videos. A highly efficient, stable and reliable power source (DC 12V, 3A) will provide a constant supply of energy.

Disk cloning instructions :

1. Before cloning, make a backup of the files on the target hard drive. All files on the target hard drive will be overwritten during offline cloning.
2. To avoid data loss, do not remove or insert drives while one of them is in the docking station. Before removing the drive, turn off the docking station.
3. Before using the cloning function, please read the user manual carefully.
4. Make sure the power switch on the back is in the OFF position and connected correctly.
5. Insert both hard drives, then identify the source and destination drives. Note: The destination disk must be larger/equal to the source disk!
6. Make sure the USB cable is disconnected from the computer when cloning.
7. Connect the power adapter and turn on the power.

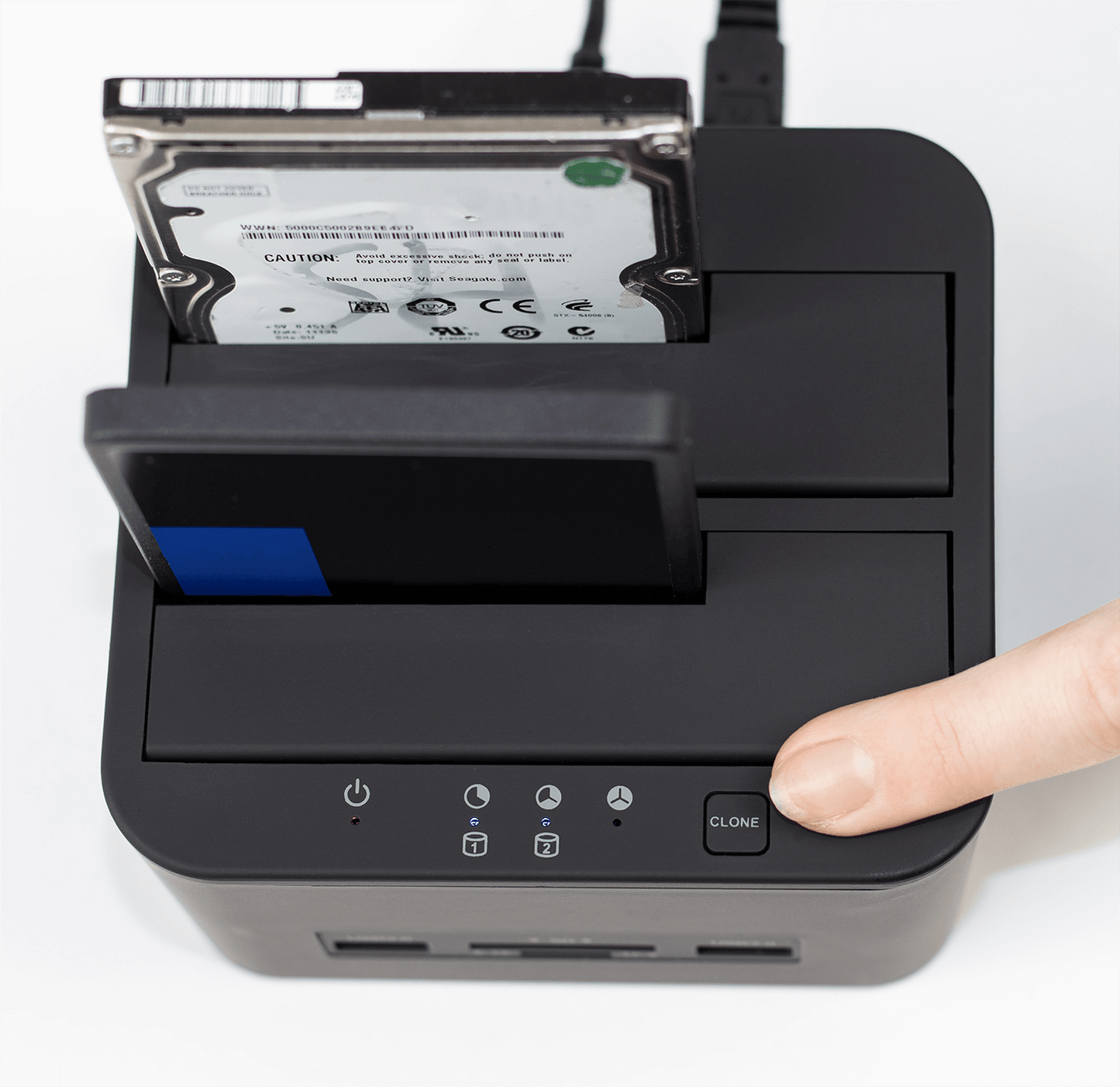

8. Press the "Clone" button for 3 seconds, the LED indicator will be on. Then quickly press the offline clone button and the offline clone operation will start. Each LED represents 25% completion. When the offline cloning operation is complete, all LEDs will be solid.
9. Finally, turn off the device.

Specification :

• Model: RDOC72
• Disk support: HDD SATA I/II/III 2.5" and 3.5"
• Maximum disk size: up to 16 TB

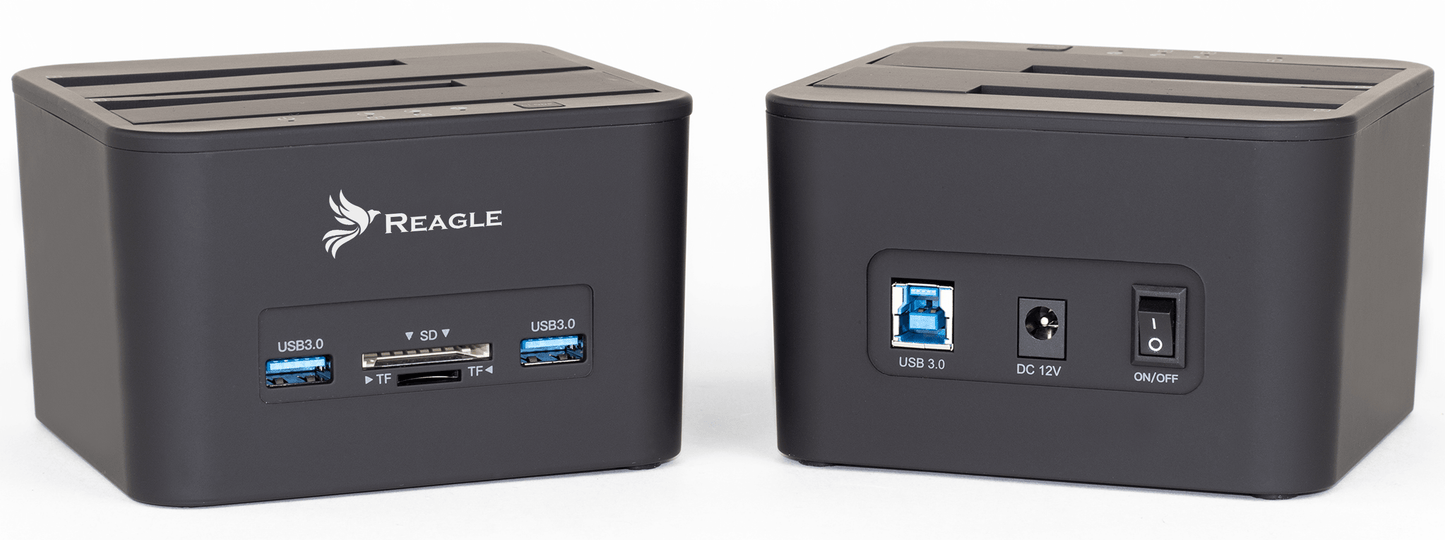

• Ports: 2 x SATA, 2 x USB-A, 1 x SD card reader, 1 x TF card reader
• USB standard: SuperSpeed ​​USB 3.2 Gen 1
• Data transfer: up to 5 Gb/s
• Maximum data transfer speed for the card reader: 480 Mb/s
• USB backward compatibility: yes
• Disk installation: no additional tools required
• Offline cloning: yes
• Black colour
• Plug and play: yes
• Compatibility with systems: Windows XP / Vista / Windows 7 / Windows 8 / Windows 8.1 / Windows 10, Mac IOS 10.4 to 10.11
• Power supply: 12V 3A
• USB-A – USB-B cable length: 80 cm
• Length of the power supply cable: 120 cm
• Dimensions: 103.5 mm x 113.5 mm x 69.5 mm
• Included: 1 x docking station, 1 x power supply, 1 x USB cable, 1 x user manual
